CS WallMountTrack

CS WallMountTrack

Specifications
Downloads

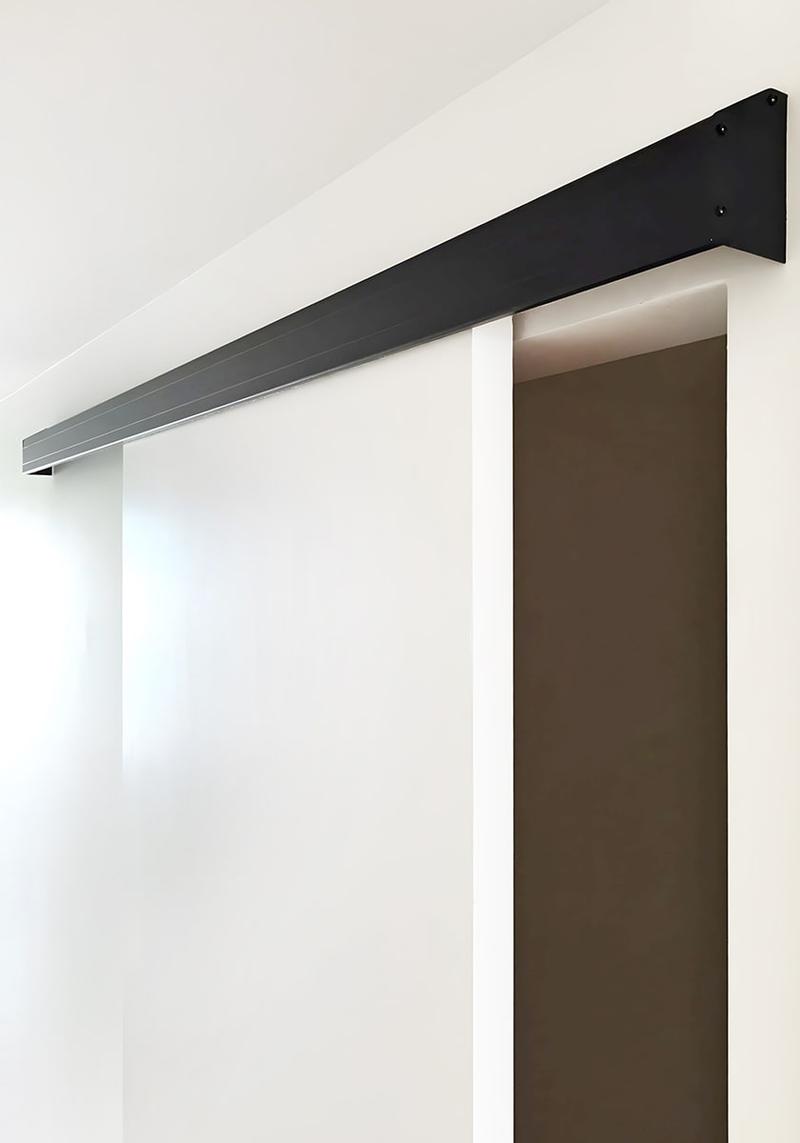

The CS WallMountTrack is the perfect solution for a contemporary barn door system.

This system stands apart with its distinctive angled pelmet and minimalist design, offering a modern twist on traditional barn door systems.

The track is supplied with pre-drilled fixing holes for quick and easy installation. It also comes with a pre-finished clip-on aluminum fascia and end caps that neatly conceal the top of the door, track, and running gear.

The CS WallMountTrack can also be upgraded with the SofStop® soft-close feature, making it ideal for quiet environments like bedrooms, offices, and patient rooms.

Product Specifications

Wall Mount Track Specification DrawingWall Mount Track Specification Drawing

Features

  • The CS WallMountTrack is a modern aesthetic barn door solution.
  • Fascia may be anodized or powder-coated. Standard finishes: Clear or Bronze Anodized. Inquire about custom colors.
  • Available as a single track set-up only, i.e. no double or triple track versions are available.
  • Track can be configured to suit Bi-Parting doors.

Technical Details

Fascia Finishes: Clear or Bronze Anodized Aluminum

Track Finish: Milled Aluminum

Suitable Door Thickness: 1-3/8” to 1-3/4” (35-45mm)

Maximum Door Weight: 500 lb (240kg)

Maximum Track Length: 24' (7.3m)

Brush Seals Available: Yes

Carriage Packs: M6 (200lb), M8 (500lb), SofStop, SofStop HD

How to Specify

Step 1. Determine Door Width: Generally, your track length should be twice your door width.

Step 2. Select Track Length: Multiply your door width by two. Choose from pre-cut lengths: 6', 8', 12', 24'. Tracks can be cut down for custom widths.

Step 3. Select Carriage Pack: Choose one pack per door. Each pack includes carriages, mounting plates, T-Guide, screws, and an adjusting wrench.
For standard operation, select M6 (200lb/90kg) or M8 (500lb/240kg). For soft close, consult our SofStop Minimum Door Width table.

A Track Stop is needed when no physical stops are present, i.e., your door does not come to rest at a closing jamb or wall stud. If this is the case for your installation, be sure to choose a carriage pack that includes a stop.

Step 4 Fascia and End Caps: Clip-on fascia and end caps are available in natural or bronze anodized finishes. Custom finishes are available for commercial projects.
