CS Frameless Glass Clamp

CS Frameless Glass Clamp

Specifications
Downloads

The CS Frameless Glass clamp system is designed to take sliding glass doors of 3/8” or 1/2” thickness. The clamp is compatible with all of the standard CS track systems. Use this system for a distinctive, smooth running, reliable frameless sliding glass door system.

Product Specifications

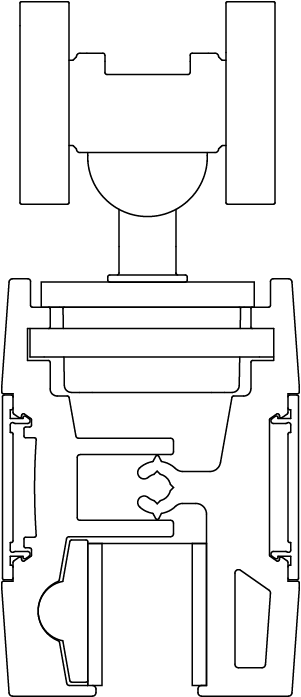

Frameless Glass Clamp Specification DrawingFrameless Glass Clamp Specification Drawing

Clamp Finish

Clear Anodized

Glass Thickness

3/8”(10mm) or 1/2” (13mm)

Max Door Weight

500lb (240kg)

Clamp Height

2-3/8” (60mm)

Clamp Width

1-5/8” (41mm)

Carriage Pack

M8 only (500lb)

Features

  • Compatible with all of the standard CS tracks (ordered separately)
  • Frameless glass clamp suitable for sliding glass doors up to 500lb
  • Removable end cap
