Push'n'Pop Jexis

The Jexis Cavity Release is a neat alternative to front edge of door hardware for retrieving doors from cavity pockets.

Product Specifications

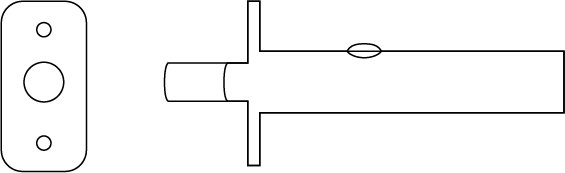

Jexis Spec DrawingJexis Spec Drawing

Features

  • Easy to fit - average installation time is less than two minutes and the only tool needed is a drill, two bits and a couple of screws.
  • Easy to operate: Just push n' pop the door out to extract it from the cavity.
  • New or existing doors (timber only).
  • Long life in service.
  • No maintenance required (fit and forget).
  • Cost effective.
  • Suitable for doors up to 70kg

How it works

The Jexis works by loading a spring mechanism when opening the door (specifically the last 15mm). Once the spring is charged, simply push on the door edge to release the spring catch and the door is propelled up to 100mm from the pocket.

Glazed doors

Glazed doors require available depth of 120mm.
