The CS MidWay® is a versatile mid-range cavity slider designed to accommodate standard and higher door sizes commonly specified today. Offering more size flexibility than the CS SpaceMaker, it suits standard 90mm wall framing and supports door weights up to 120kg. Available in both standard and custom sizes, the CS MidWay features robust aluminium components and a variety of jamb options, ensuring strength, reliability, and seamless integration with your design. Perfect for residential and commercial applications, the CS MidWay provides a practical and elegant solution for maximising space.

Product Specifications

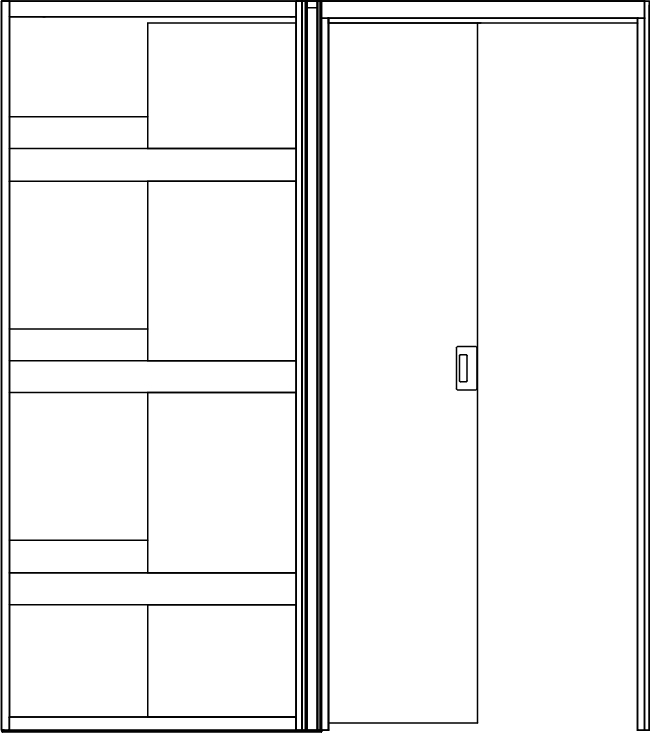

CavitySliders - Midway Spec Drawing NZ AUCavitySliders - Midway Spec Drawing NZ AU

Features

Maximum Size - Door sizes up to 2400mm High x 1100mm Wide & up to 38mm Thick

Wall Framing - 90mm

Maximum door weight - 120kg

SofStop: 20kg, 50kg & 100kg Single and 50kg Twin (Soft Open/Close)

How to Specify (example)

Product: ~ CS MidWay Cavity Slider

Location: ~ Dining Room

Door leaf dimensions: ~ 2400mm x 820mm

Door type: ~ CS Loft Door

Door finish: ~ Matt Black

Single or Bi-Parting: ~ Single

Operation: ~ SofStop 50kg

Jamb type & finish: ~ Pine flat (for architraves)

Framing material & size: ~ 90mm timber framing

Wall lining thickness: ~ 13mm

Handle type: ~ CS fitted pull handle

Detail Options

Incorporate any of the following architectural detail options with CS MidWay to create a specific look or to provide a unique solution:
