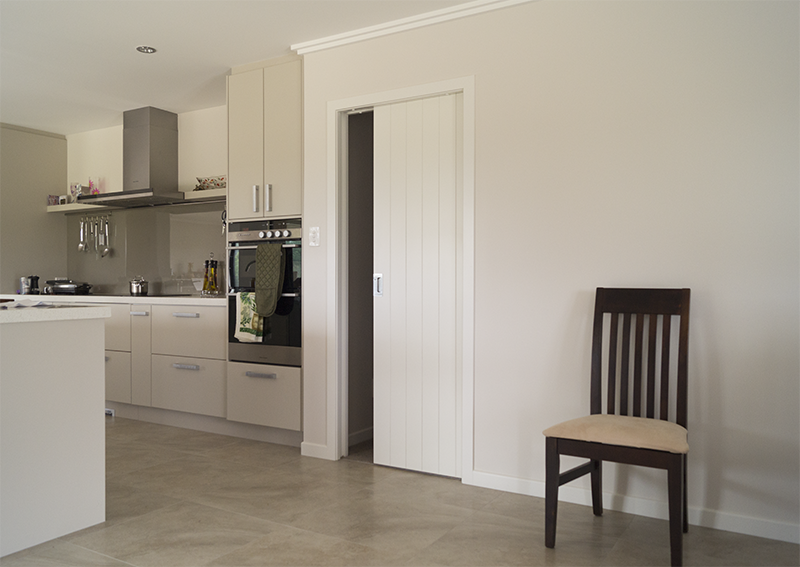

Slimslider in kitchen

The SlimSlider is engineered to fit 70mm (3 inch) framing, making it ideal for renovations and spaces with thinner walls. It accommodates standard thickness doors, providing a sleek, versatile solution for both residential and some commercial applications. Its slimmer design is perfect for older frameworks, and it comes with standard jambs in a paint finish to suit architraves or grooved for plasterboard. The split jambs are pre-primed aluminium for added strength.

Product Specifications

CavitySliders - SlimSlider Spec Drawing NZ AUCavitySliders - SlimSlider Spec Drawing NZ AU

Features

Maximum Size - Door sizes up to 2100mm High x 920mm Wide & up to 38mm Thick

Wall Framing - 70mm

Maximum door weight - 120kg

SofStop: 20kg, 50kg & 100kg Single and 50kg Twin (Soft Open/Close)

How to Specify (example)

Product: ~ CS SlimSlider Cavity Slider

Location: ~ Kitchen

Door leaf dimensions: ~ 2040mm x 820mm

Door type: ~ 38mm Flush Door

Door finish: ~ Paint Quality

Single or Bi-Parting: ~ Single

Operation: ~ Manual

Jamb type & finish: ~ Pine flat (for architraves)

Framing material & size: ~ 70mm timber framing

Wall lining thickness: ~ 10mm

Handle type: ~ CaviLock CL200 Passage

Detail Options

Incorporate any of the following architectural detail options with CS SlimSlider to create a specific look or to provide a unique solution:
