Overtaking

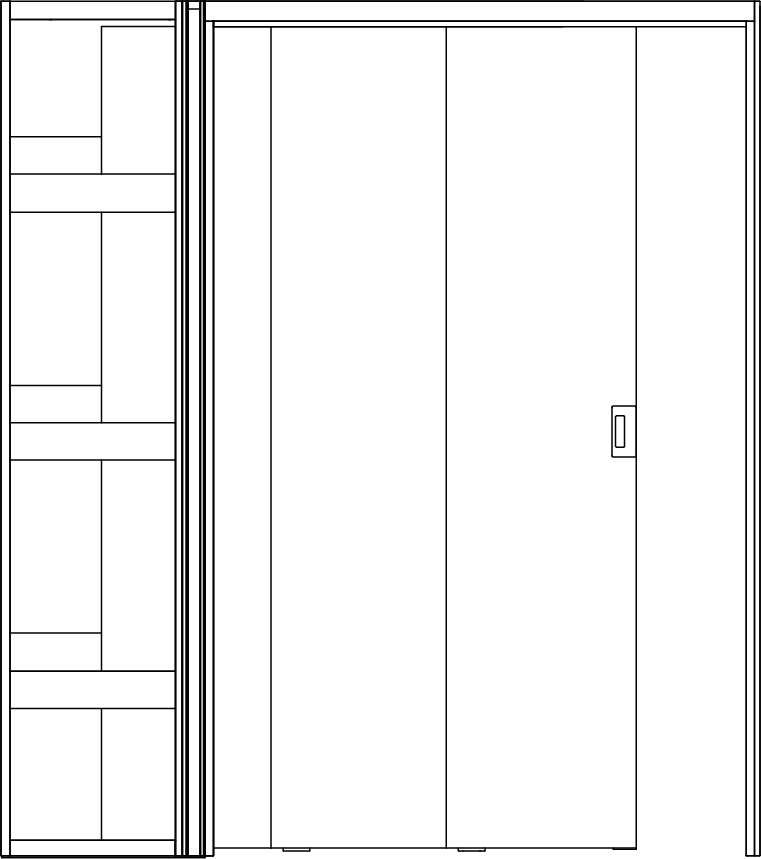

CS OvertakingDoors have an extra-thick cavity pocket, enabling a series of doors (up to five) to stack side-by-side inside the cavity pocket. These units make great room dividers, and because the width of the pocket can be minimised, the potential size of the door opening can be maximised.

Ideal spaces that benefit from this type of room divider are boardrooms, classrooms, living areas etc.

Product Specifications

Features

Designed to work in conjunction with our aluminium NewYorker sliding doors.
Door collection system links doors so there are no floor tracks or guides through the opening.
Units fit into standard timber stud sizes.
Cavity pocket is only one door width deep, while openings can span 2, 3, 4 or 5 door widths
There are no ‘joins’ along the one-piece aluminium track so doors move smoothly and are easy to operate.

Max. size

Custom sizes up to 3000h x 3500w per door

Max. Door Weight (Standard)

240kg

Max. Door Weight (SofStop)

100kg

Wall Framing

2 doors: 140mm

3 doors: 190mm

4 doors: 240mm

5 doors: 290mm

Wall Linings
