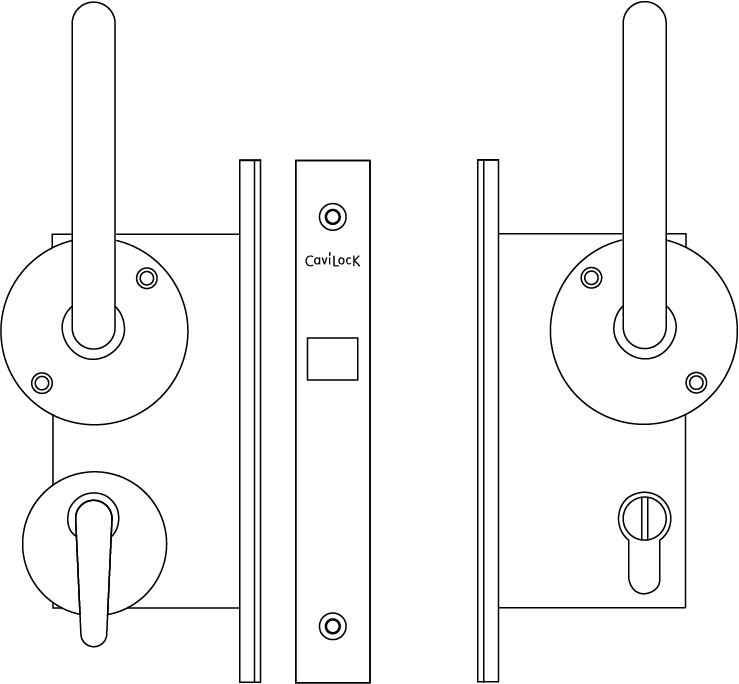

CL100 ADA Lever

The CL100 ADA Lever is a disabled access lever handle designed with ease of use and longevity of service in mind. Brass and stainless steel working components ensure reliability.

The privacy turn has been designed in accordance with ADA Accessibility Guidelines for Buildings and Facilities and is easily operable without pinching, grasping or twisting of the wrist. The vertical lever grip enables a positive pull action on even the heaviest doors.

Product Specifications

Options

The CL100 ADA Lever is not handed

Lever - ADA Turn / Key

Lever - ADA Turn / Emergency

Features

Compliant with ADA Standards for Accessible Design
Easy to use - no tight pinching or twisting of the wrist.
Matches other hardware in the CL100 range.

The CL100 ADA Lever includes a Euro Profile cylinder with American Schlage C Keyway, specified as either KA (Keyed Alike) or KD (Keyed to Differ). It is most suitable for 1-3/4” thick doors.

Finishes

Satin Chrome

Minimum Door Thickness

1-3/8" (34mm)

Back Set: 2-3/64" (56mm)

ADA Compliance

The CL100 ADA Lever handle is easy to grasp with one hand and does not require tight grasping, tight pinching or twisting of the wrist. The opening force required to operate the unit is less than 5lbf (22.2N), which is under the threshold for ADA compliance.

Operable parts of hardware must be mounted 34” (865mm) min. and 48” (1220 mm) max. above the finished floor to meet ADA guidelines.

The clear width of the door opening must be a minimum of 32”.

Always check State and Federal guidelines relating to the specific project.
