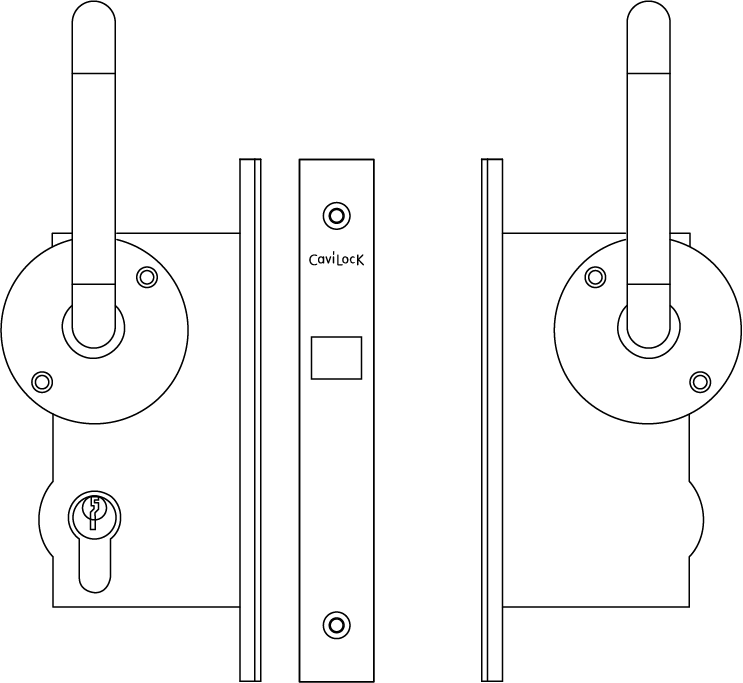

CL100 Range Lever Sliding Door Hardware

This is the most popular commercial sliding door handle for fitting to our CL100 Mortise Lock. It is robust and strong and has a commercial look that matches other commercial handles and locks in most applications. The vertical lever grip enables a positive pull action on even the heaviest doors. Other lever and rose hardware may be fitted to the side of the CL100 Mortise Lock - please contact us for information on which handles are applicable.

Note: the door must protrude 4" (100mm) from the pocket to allow room for the hardware on the door

Product Specifications

Features

Sleek Design: The CL100 Range Lever sliding door handle is a large, easy-to-operate lever pull that can be combined with a Euro Profile Cylinder lock for security and convenience.

Corrosion-Resistant Construction: A solid construction of Zinc, Bronze, Brass, and Stainless steel combine to create an ultra-durable and corrosion-resistant range of handles.

Versatile Installation: Every CL100 Range handle shares the CL100 Mortise Lock internally, allowing you to use the same installation template for multiple doors, even if they have differing external hardware.

Key Locking: Key locking may be added to any CL100 Range Handle with the addition of a Euro Profile cylinder with American Schlage C Keyway, specified as either KA (Keyed Alike) or KD (Keyed to Differ). Please note that this specification is suitable for 1-3/4” thick doors and must be done at time of order.

Application: Suitable for a wide range of pocket and surface sliding doors in residential, commercial, and hospitality applications.

Technical Details

Door Thickness: 1-3/8" (34mm), Key Locking: 1-3/4" (37mm)

Door Protrusion: 4" (100mm)

Backset: 2-13/64" (56mm)

Suitable Door Types: Wood, Aluminum

Options: Lever - Key/Key, Lever - Key/Turn, Lever - Key One Side, Lever - Turn/Emergency, Lever Only

Finishes: Satin Chrome

Downloads

Brochure Product Codes Template and Instructions Machining Detail

Videos

CL100 Lever handle from the CaviLock CL100 range for pocket doors or sliding doors. The CL100 Lever is the most common commercial side handle fitted to the CL100 Mortise Lock. It is robust and strong and has a commercial look that matches other commercial handles and locks in most applications. The vertical lever grip enables a positive pull action on even the heaviest doors. Visit our website: https://www.cavitysliders.co.nz/products/cavilock-handles/cl100-lever for more information.
