CS Cavity Slider Pocket Frame

CS Cavity Slider Pocket Door Frame

Specifications
Downloads

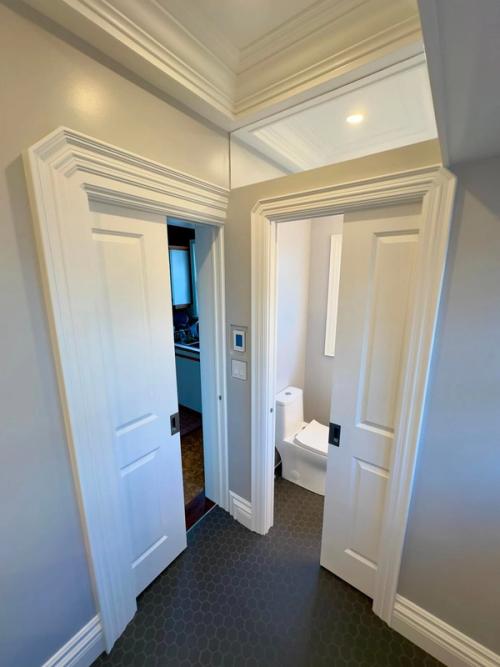

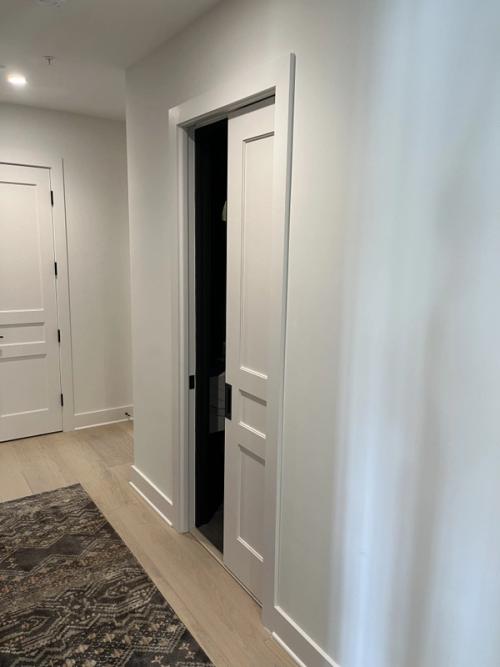

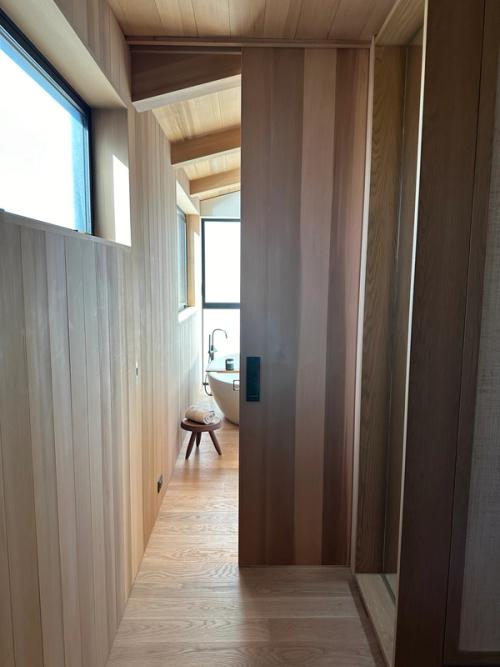

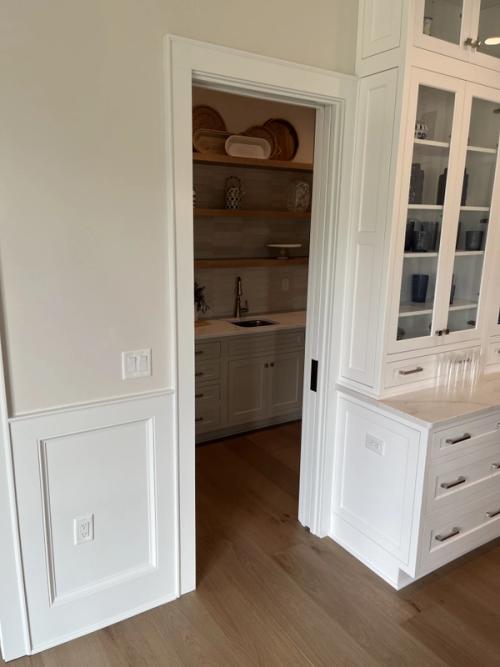

The CS Cavity Slider® Pocket Door Frame is the ideal solution for saving space. Easy to assemble and structurally sound, it is specifically designed for 4" framing (2x4 stud size).

Constructed from aluminum extrusions, the CS Cavity Slider complies with Type 1 construction code, ensuring no combustible materials are used. Perfect for both residential and commercial applications, this adaptable frame enhances space efficiency.

Product Specifications

CS Cavity Slider Pocket Frame CS Cavity Slider Pocket Frame

Features

Robust Construction: Made from aluminum extrusions, providing structural robustness.

Easy Assembly: Supplied as a kitset, easy to assemble and install.

Door Compatibility: Accommodates 1-3/8” and 1-3/4” doors up to 4’0” x 8’0”; can be cut to size on site.

Soft Close Option: Can be upgraded to SofStop® soft close for quiet operation.

Application Areas: Suitable for bedrooms, offices, patient rooms, restrooms, hallways, laundries, and architectural feature openings.

Residential and Commercial Use: Meets Type 1 construction code without combustible materials.

Dimensions

Sizes:

3'0"x6'8", 3'0"x8'0", 4'0"x8'0"
Additional sizes are available; contact us for more information

Maximum Door Weight:

500 lb (240kg)

Door Thickness:

1-3/8” or 1-3/4”(35 or 44.5mm)


How to Specify

Step 1. Determine your stud size. For 4" Framing (2x4 Stud), select the Standard CS Cavity Slider Pocket Frame.

For 6" Framing (2x6 Stud), select the CS Cavity Slider Ultimate Pocket Frame.

Step 2. Choose your frame size. Select the frame that most closely matches your door size. Frames can be cut down on-site.

Step 3. Select your carriage pack. You will need to select one pack per door. Each carriage pack includes carriages, mounting plates, T-Guide, fixing screws, and adjusting wrench.

For standard operation, select M6 (Door Weight: 200lb/90kg) or M8 (Door Weight: 500lb/240kg) carriages.

For Soft Close, Soft Open, or Twin Action, please consult the SofStop compatibility table.

Track Stops
Track stops are only needed for bi-parting pairs of pocket frames. They are placed at the center, where the two tracks meet to prevent the door from entering the other pocket.

Extrusion Cut Lengths

When cutting your frame down to a custom size, please review these drawings for the recommended lengths to cut your extrusions. Click on the size you want below to download the drawing.

Video

Matt Risinger provides an overview of the CS Cavity Slider Pocket Frame and how its design addresses the issues related to the traditional wooden pocket frame.

CaviSliderCavity Slider Pocket Door Frame

4" Framing (Standard, 2x4 Stud)
