CS Cavity Slider Ultimate Pocket Door Frame

CS Cavity Slider Ultimate Pocket Door Frame

Specifications
Downloads

The CS Cavity Slider® Ultimate Pocket Door Frame is the premier choice for maximizing space. It offers ease of assembly and robust structural integrity, tailored for 6" framing (2x6 stud size).

Made from high-quality aluminum extrusions, the CS Cavity Slider adheres to Type 1 construction code with zero combustible materials. Suited for both residential and commercial settings, this frame provides superior space optimization.

Product Specifications

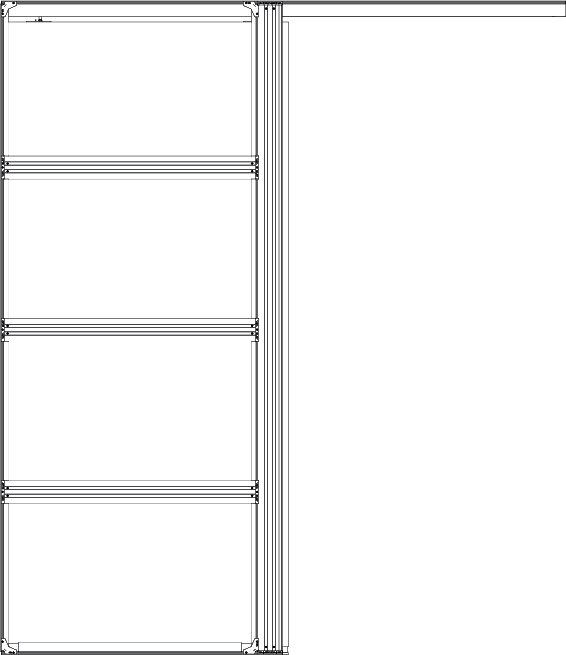

CS Ultimate Cavity Slider Pocket Frame Specification DrawingCS Ultimate Cavity Slider Pocket Frame Specification Drawing

Features

Robust Construction: Made from aluminum extrusions, providing structural robustness.

Easy Assembly: Supplied as a kitset, easy to assemble and install.

Door Compatibility: Accommodates 1-3/8” to 2-1/4” doors up to 5’0” x 10’0”; can be cut to size on site.

Soft Close Option: Can be upgraded to SofStop® soft close for quiet operation.

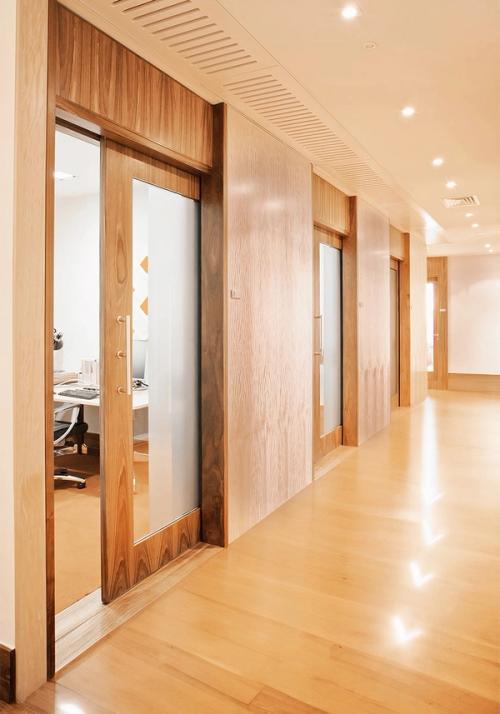

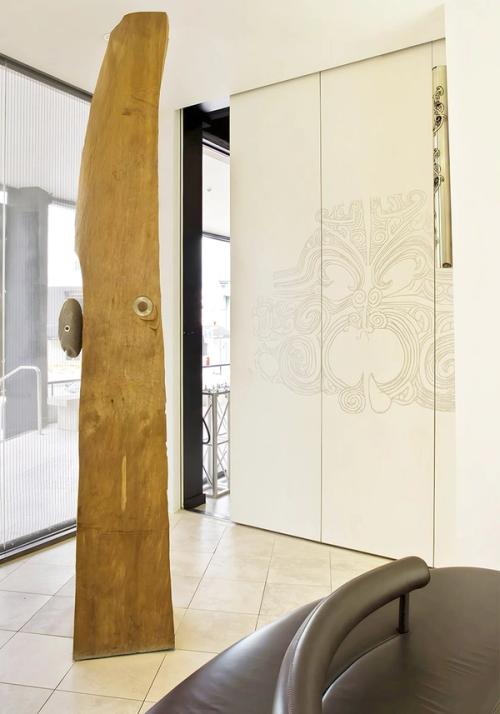

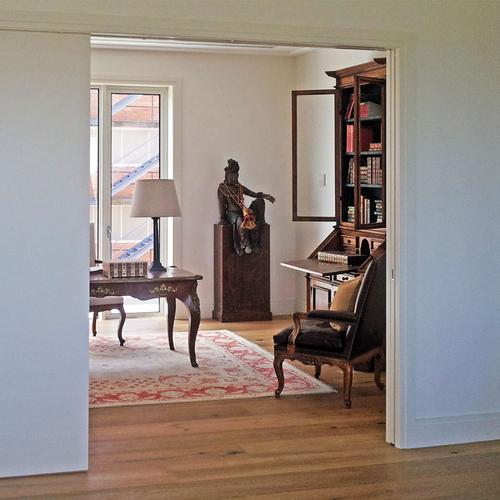

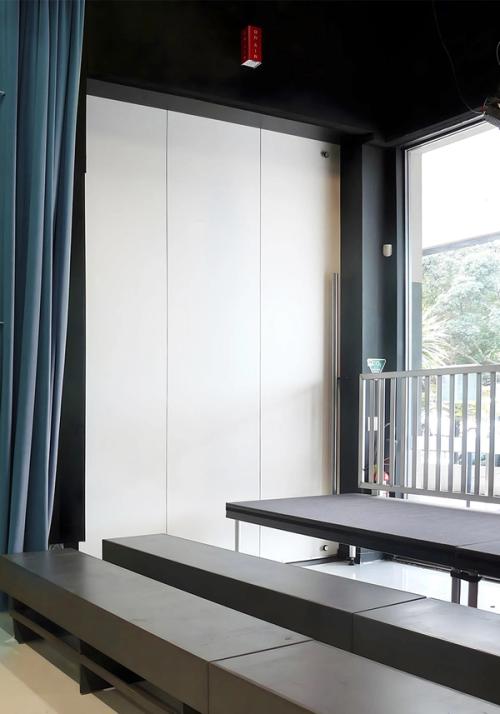

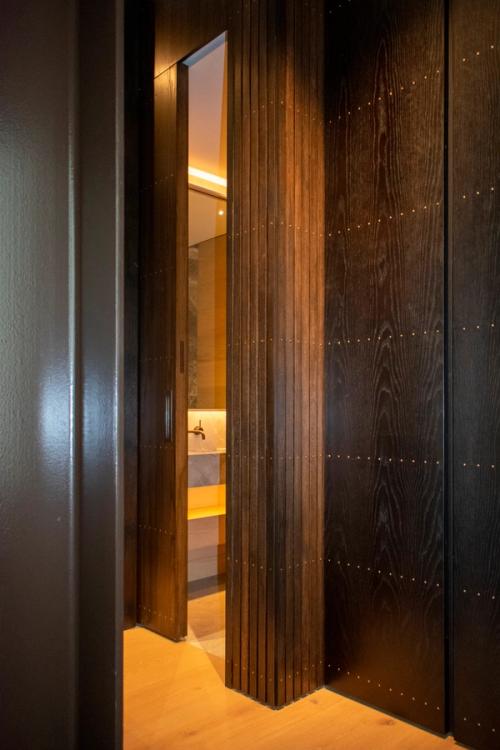

Application Areas: Suitable for bedrooms, offices, patient rooms, restrooms, hallways, laundries, and architectural feature openings.

Residential and Commercial Use: Meets Type 1 construction code without combustible materials.

Dimensions

Sizes:

2'6" x 8'0", 3'0"x8'0", 4’0” x 8’0”, 3’0” x 9’0”, 4'0" x 9'0", 3'0" x 10'0", 4'0" x 10'0", 5'0" x 10'0"

Maximum Door Weight:

500 lb (240kg)

Door Thickness:

1-3/8” to 2-1/4”(35 to 57 mm)


How to Specify

Step 1. Determine your stud size. For 4" Framing (2x4 Stud), select the Standard CS Cavity Slider Pocket Frame.

For 6" Framing (2x6 Stud), select the CS Cavity Slider Ultimate Pocket Frame.

Step 2. Choose your frame size. Select the frame that most closely matches your door size. Frames can be cut down on-site.

Step 3. Select your carriage pack. You will need to select one pack per door. Each carriage pack includes carriages, mounting plates, T-Guide, fixing screws, and adjusting wrench.

For standard operation, select M6 (Door Weight: 200lb/90kg) or M8 (Door Weight: 500lb/240kg) carriages.

For Soft Close, Soft Open, or Twin Action, please consult the SofStop compatibility table.

Track Stops

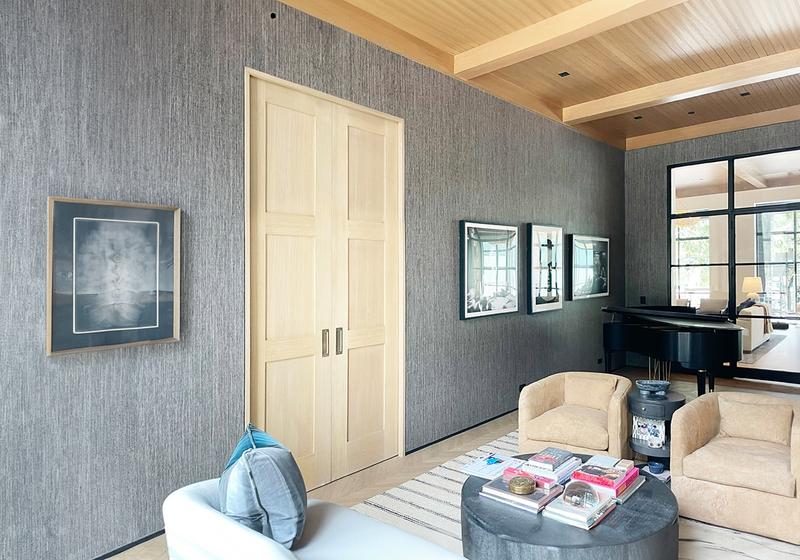

Track stops are only needed for bi-parting pairs of pocket frames. They are placed at the center, where the two tracks meet to prevent the door from entering the other pocket.

Extrusion Cut Lengths

When cutting your frame down to a custom size, please review these drawings for the recommended lengths to cut your extrusions. Click on the size you want below to download the drawing.

Video

Assemble and install the CS Cavity Slider Pocket Door Frame by securing the track, attaching the frame to the wall studs, fitting the door brackets, and ensuring alignment for smooth sliding operation.

Install the CS SofStop by attaching the track, securing the SofStop unit, mounting the rollers, and ensuring smooth, soft-closing door operation with final adjustments.

CaviSliderCavity Slider Pocket Door Frame

6" Framing (Ultimate, 2x6 Stud)
