CS AutoCav WC

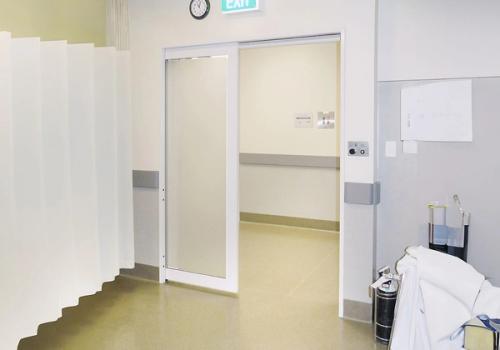

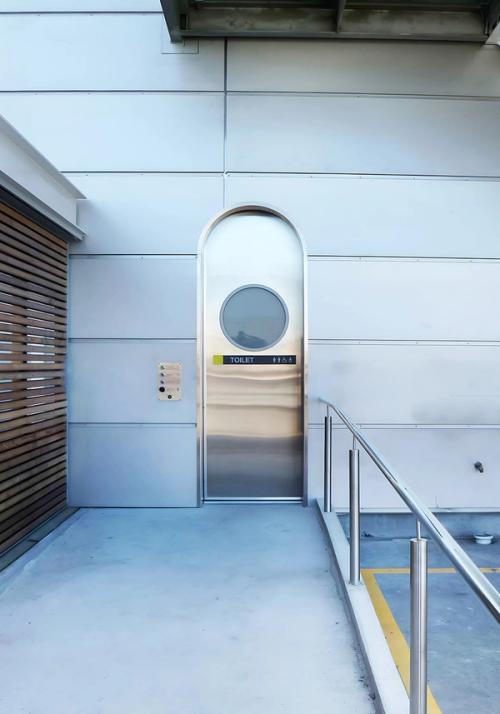

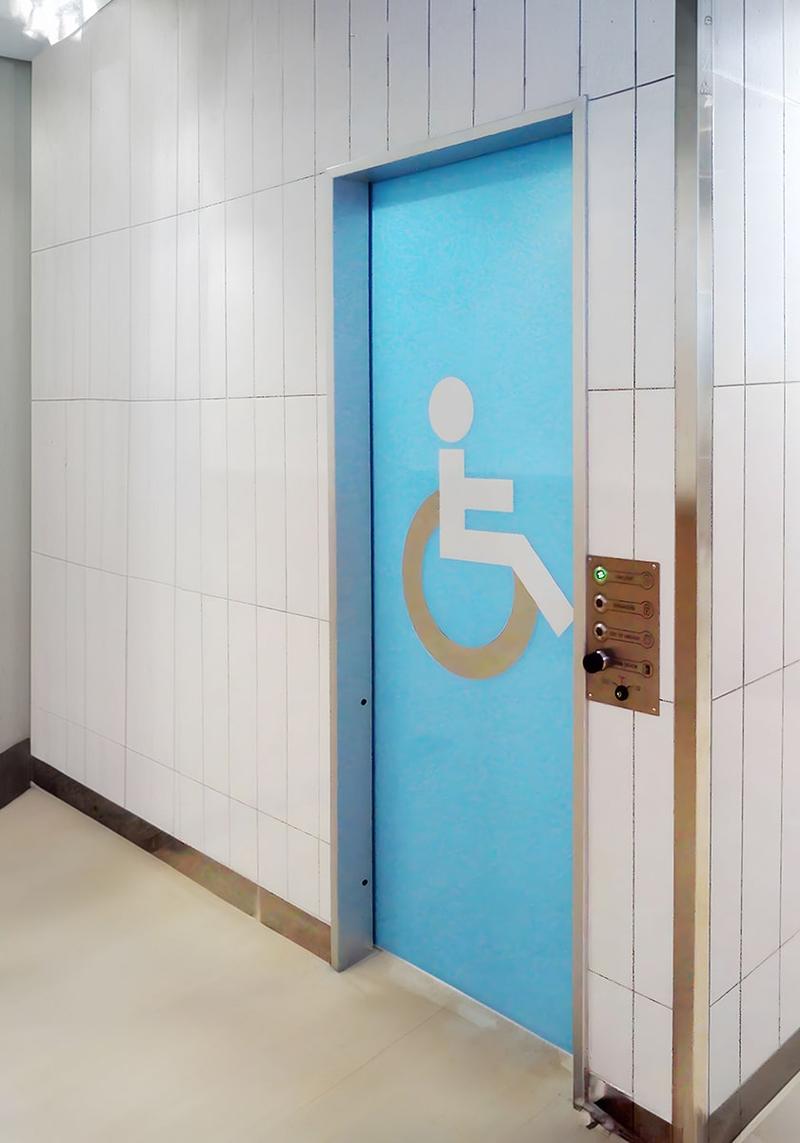

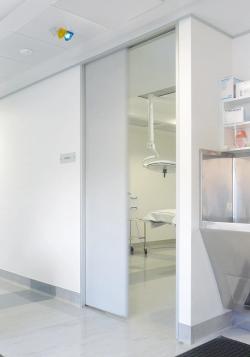

The CS AutoCav® WC uses advanced automation to provide a more hygienic and convenient toilet access door. This electrically powered unit is perfect for hands-free public or wheelchair access to toilets in hospitals, restaurants, or any facilities with exterior toilet access.

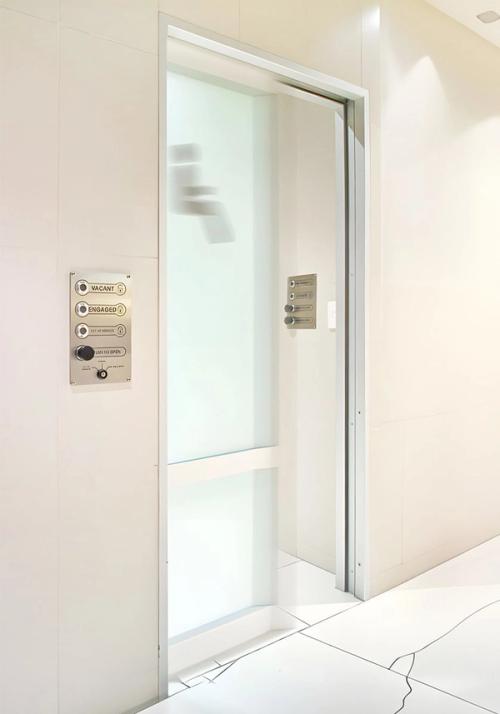

Key features include high-quality stainless steel indicator plates with flashing LED lights and push buttons next to laser-etched logos and writing, ensuring clear and easy operation.

Crafted with high-quality components and refined through countless design hours, this product guarantees a safe and pleasant user experience. For building owners, the CS AutoCav® WC offers minimal maintenance requirements and robust resistance to vandalism.

Product Specifications

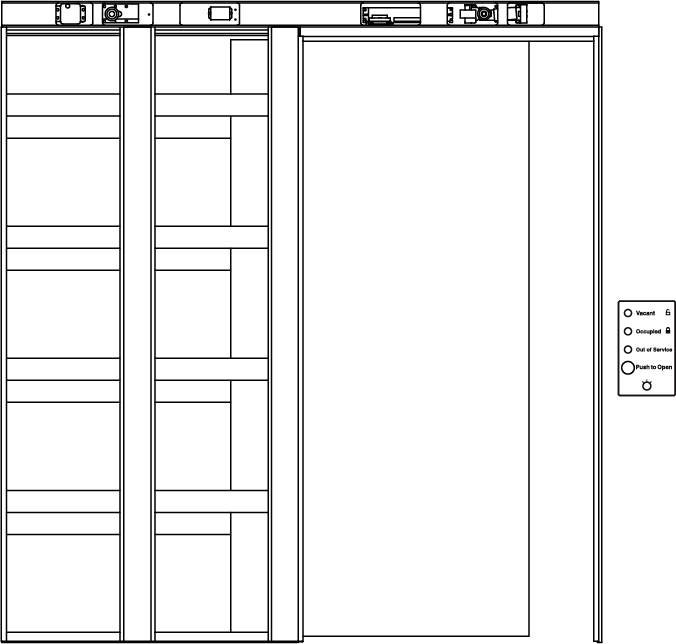

CS Autocav WC Specification DrawingCS Autocav WC Specification Drawing

Features

  • Maximum Size - can be custom made to suit any size up to a maximum door size of 3m High x 3m Wide. A minimum door width of 860mm is required for an Automatic Cavity unit.
  • Wall Framing - Alternative wall lining and additional cavity features may be available on request. Designed to operate in a 90mm or 140mm stud frame and comes standard ready for 10mm or 13mm wall linings.
  • Maximum door weight -200kg
  • Can be programmed to be compliant with AS 5007-2007.

How to Specify (example)

Product: ~ CS AutoCav WC Cavity Slider
Location: ~ D4
Door leaf dimensions: ~ 2200mm x 940mm
Door type: ~ 38mm solid core door
Door finish: ~ Paint Quality
Single or Bi-Parting: ~ Single
Operation: ~ WC Toilet
Jamb type & finish: ~ Pine flat (for architraves)
Framing material & size: ~ 90mm timber framing
Wall lining thickness: ~ 13mm
Access panel: ~ LHS

Activation Packs

A variety of access control options are available, from simple push button or overhead sensor to secure entry via touch pad, swipe key or a combination of methods. In the event of power failure, the door can be manually opened or a battery backup can be supplied, for example:

  • PLC Controlled
  • Handwave Sensor
  • Standard Light Switch
  • Accessible Toilet Control Panel
  • Heavy Duty Push Button Access
  • Piezo Button
  • Overhead Sensor

Detail Options

Click on the drop downs below to see suitable finishing details, operating functions and suitable doors for this product.
