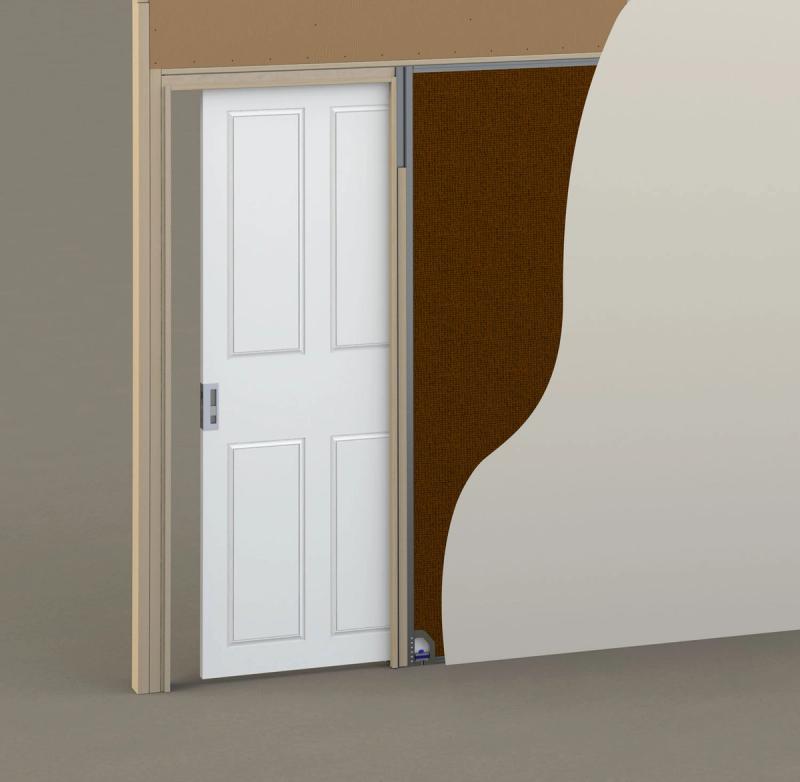

CS BraceWall

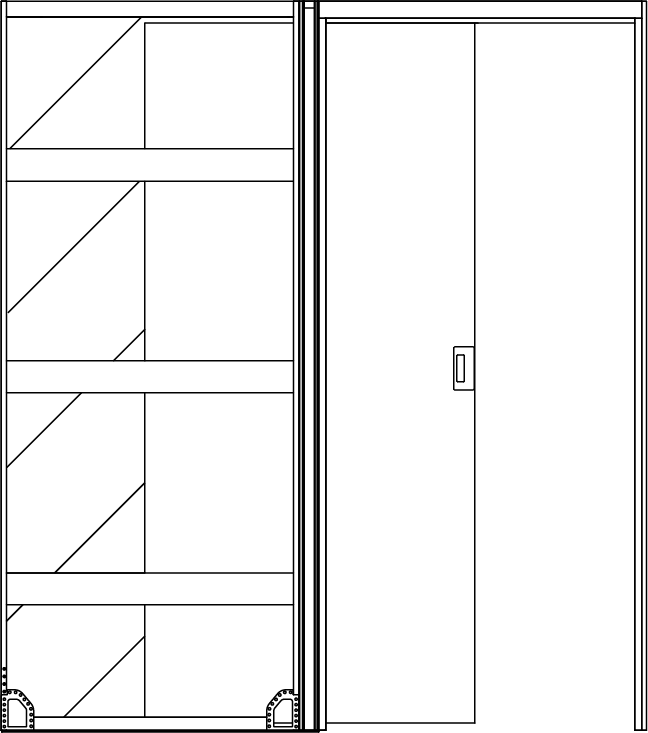

For installation into a wall where bracing is required, CS BraceWall® is the ideal solution. The patented design has been tested and analysed by BRANZ using the P21 method as per NZS 3604:2011. The solution enables all the standard benefits of the CS CaviSlider range, and once installed and lined, the finished appearance is the same as that of a regular cavity slider with the added advantage of an integrated bracing panel.

Prefixing is done during manufacture - simply bolt down on site to either concrete or timber floor. Talk to a CS Representative to discuss your specific requirements and to establish how many bracing units you can achieve or work it out yourself on the calculator.

Calculate Bracing Units: Bracing Units Calculator

Bracing Units Table: Click to view

Product Specifications

Features

Maximum Size: Door sizes up to 2982mm High x 3213mm Wide with minimum door width of 710mm Wide
Wall Framing: 90mm
Maximum Door Weight: 240kg
BRANZ Tested: Meets all relevant provisions of the New Zealand Building Code, clause B1 ‘Structure’ and B2 ‘Durability.’
Bracing Units: Obtained per metre width of door and are not reliant on wall linings (e.g. Gib Braceline).
SofStop: 20kg, 50kg & 100kg Single

How to Specify (example)
