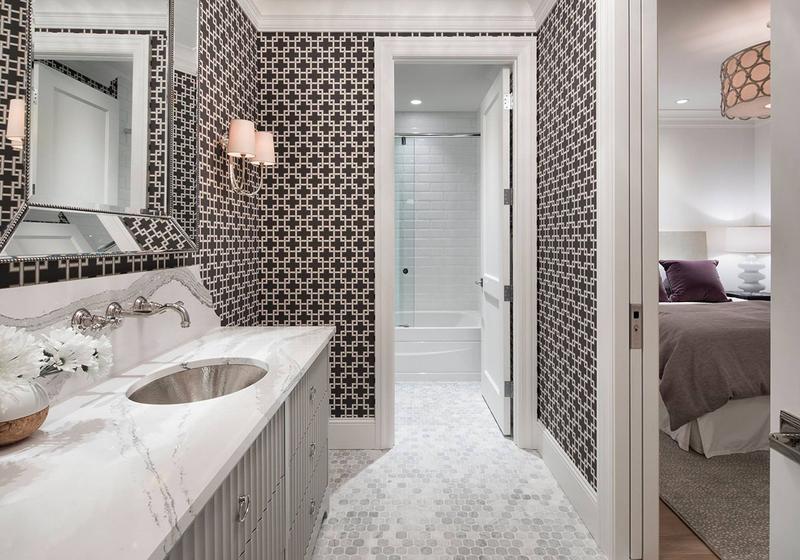

CS Cavity Sliders within bathroom of Garrison Landing Residence

CS Cavity Sliders can be configured to include a half or full sheet of ply panel in place of nogs on one side of the pocket. This is useful for situations where additional fixing is required on the wall where the cavity pocket is located, for example if a grab rail or towel rail is to be fitted in a bathroom.

For heavy tiles or if the cavity pocket is to form part of the shower enclosure it is recommended that the cavity pocket is manufactured with a 17mm H3.1 sheet of plywood in the frame. Double lining the cavity pocket with suitable wall board and tile substrate will also provide additional protection.

CS Cavity Sliders with ply panels have been tested to meet the requirements of AS 1720.1, 2010 and support a load of up to 50kg/m2. Installation of all components must be as per the manufacturer’s instructions to be compliant.

Product Specifications

CS Ply Panel Specification DrawingCS Ply Panel Specification Drawing

Features

  • Compliance: Installation of all components must be as per the manufacturer’s instructions to be compliant.
  • Maximum Load: Up to 50kg/m2
  • Heavy tiles: It is recommended that the cavity pocket is manufactured with a 17mm H3.1 sheet of plywood in the frame. Double lining the cavity pocket with suitable wall board and tile substrate will also provide additional protection.

How to Specify (example)

  • Product: ~ CS TimberFomed with built in Ply Panel by CS Cavity Sliders
  • Location: ~ Living
  • Door leaf dimensions: ~ 2400 x 1200
  • Door type & finish: ~ Paint quality, flush
  • Single or Bi-Parting: ~ Single
  • Jamb type & finish: ~ Pine Flat for architraves
  • Framing size & material: ~ 90mm timber framing
  • Wall lining thickness: ~ 10mm
  • Handle type: ~ CL200 Passage

Detail Options

Incorporate any of the following architectural detail options with Ply Panel to create a specific look or to provide a unique solution:

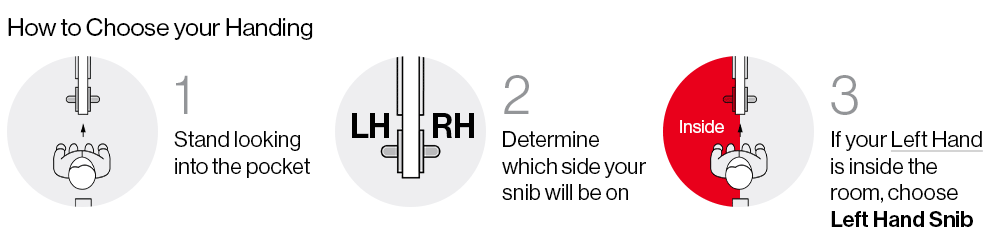

How do I choose the handing of my hardware?

1. Stand with your back against the door’s closing jamb
2. Look directly into the door’s pocket
3. Determine which side you’d like your snib (Privacy Function) or key on.

Example:
The homeowner would like to add a lock to this bathroom. Upon
positioning themselves and looking into the pocket, the homeowner’s
RIGHT hand is inside the bathroom. Therefore, the door’s handing would be: Right Hand (RH) Snib/Left Hand (LH) Emergency

How to Choose Your Handing for Pocket Door HardwareHow to Choose Your Handing for Pocket Door Hardware

Other Cavity Solutions

BraceWall Cavity SliderBraceWall Cavity Slider
Add to favorites

CS BraceWall

Tested by BRANZ using the P21 method; integrated bracing panel for installations that require added structural support.

CS SoundStopCS SoundStop
Add to favorites

CS SoundStop

For projects requiring sound control, these units come complete with a specialised acoustic door panel rated up to STC42/RW 42 dB.

HeroShot X-Ray BarrierHeroShot X-Ray Barrier
Add to favorites

CS X-Ray Barrier

Lead-barrier cavity sliding door solution designed for isotope areas and spaces with diagnostic x-ray equipment.
